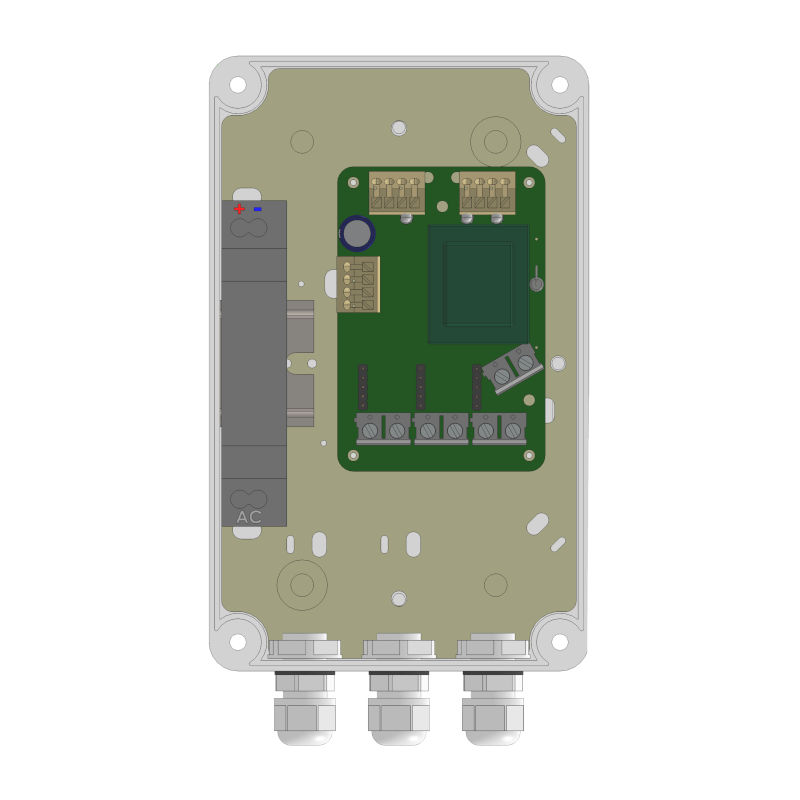

zetaAC3x installation kit

105,27 € each

7 items in stock

+

–

Selectable threshhold level allow to use in wide AC range, 60-380v. on each input.
No extra relays required to connect up to 3 AC power sources.
Provides 24v power supply for ZetaScout device
Wired connection block for LED light tower wire routing.
Strong, industrial grade ABS IP65 enclosure.

Hardware info

Name	Value	Comment
Number of inputs	3	Converts to isolated 24v DC signals to drive ZecaScout inputs directly
Input threshhold	40, 70, 110, 150v	Selectable for each input individually
IP	IP65	Incorrect mounting cable glands may reduce IP safety level.
External dimmensions	170x105x112mm	IP65, ABS enclosure
Internal dimmensions	164x99x97mm
Color	RAL 7035
Standarts	PN-EN-60670-1	CE
